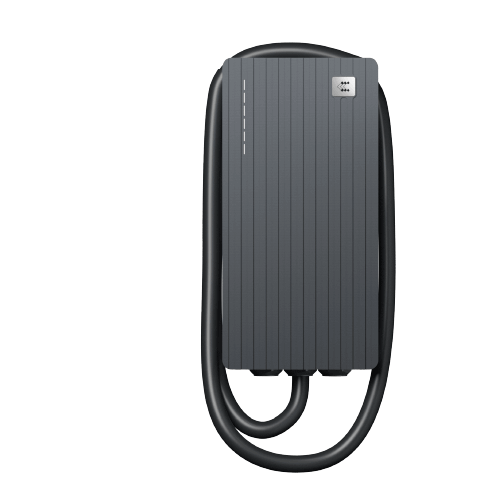

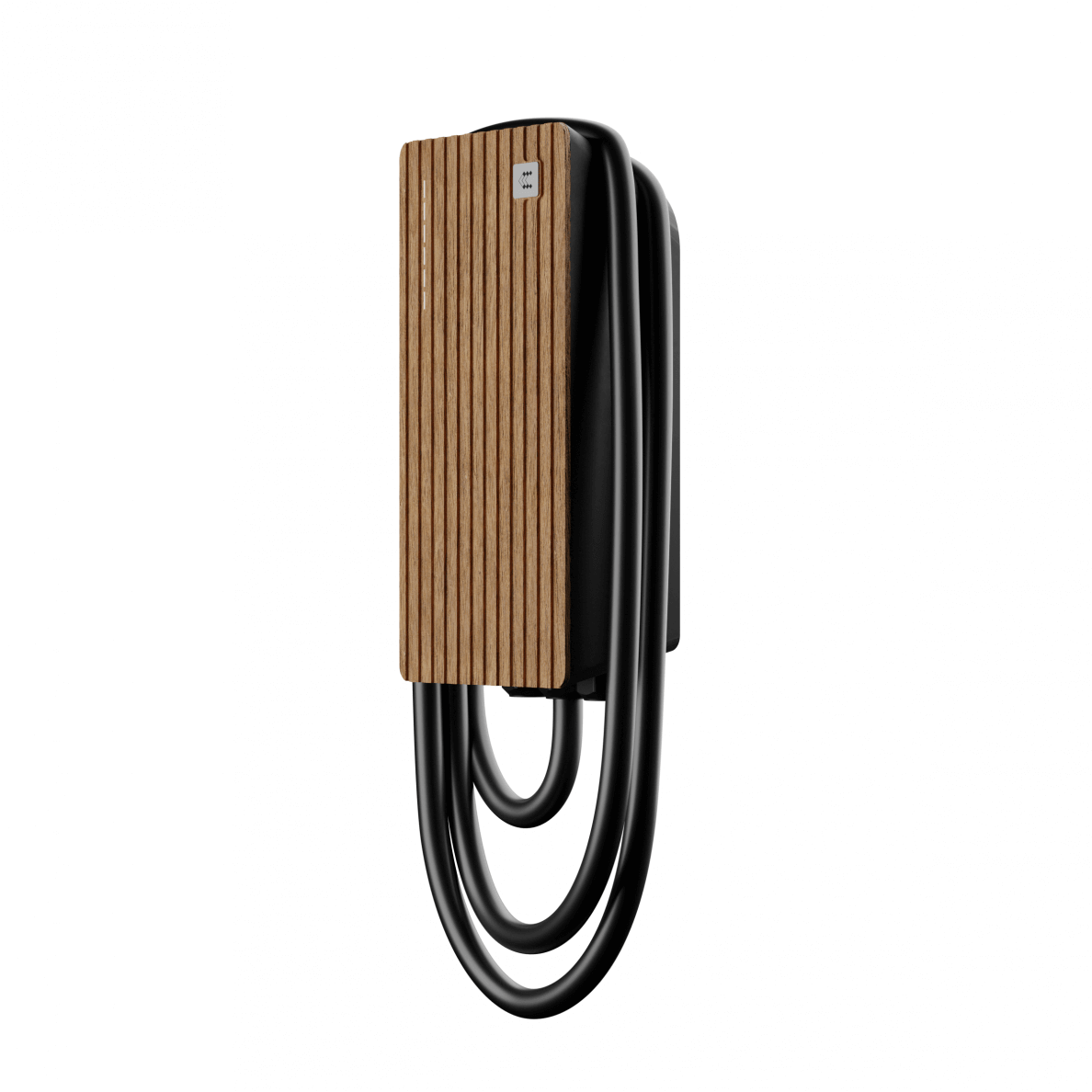

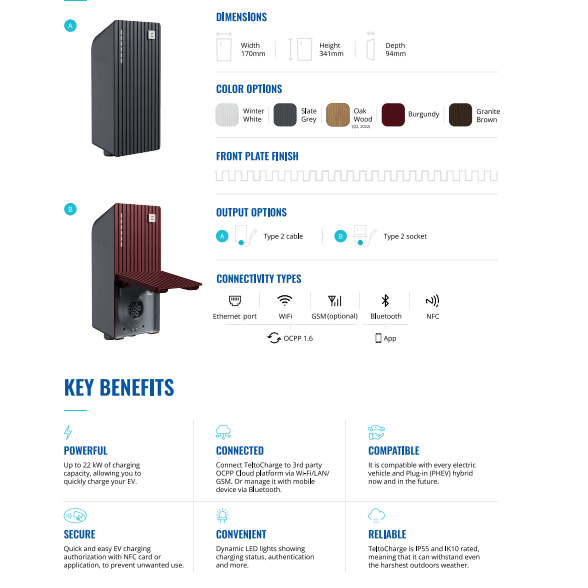

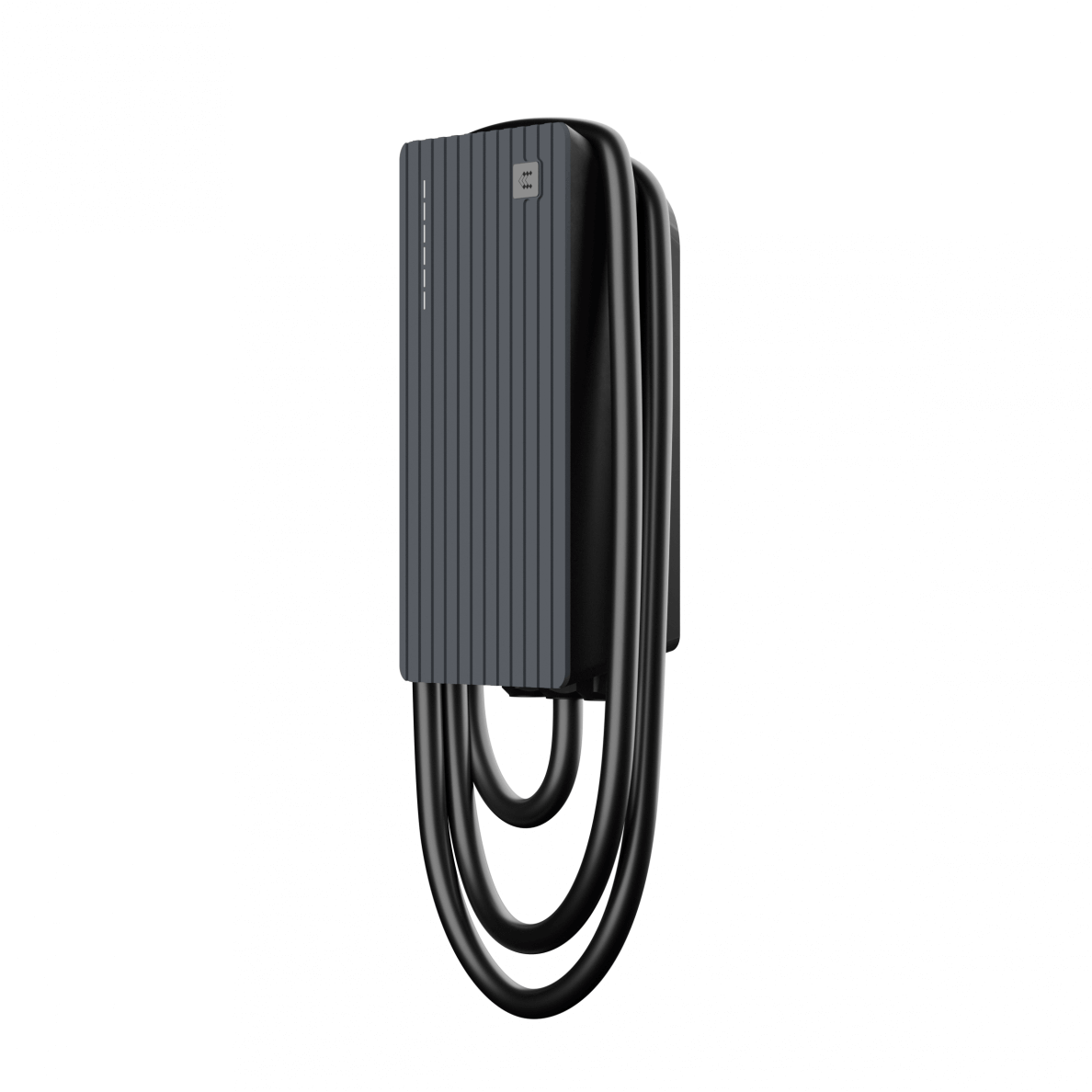

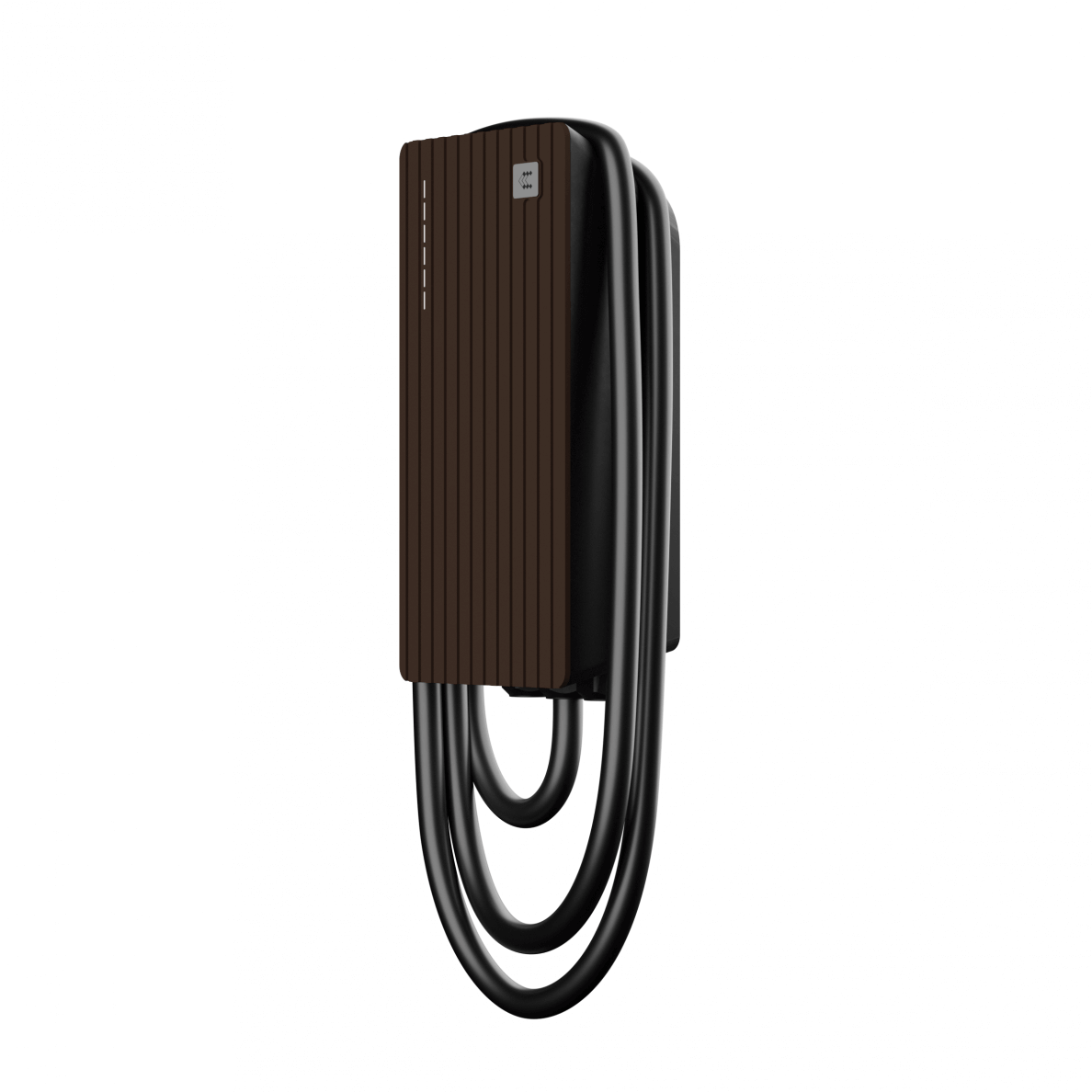

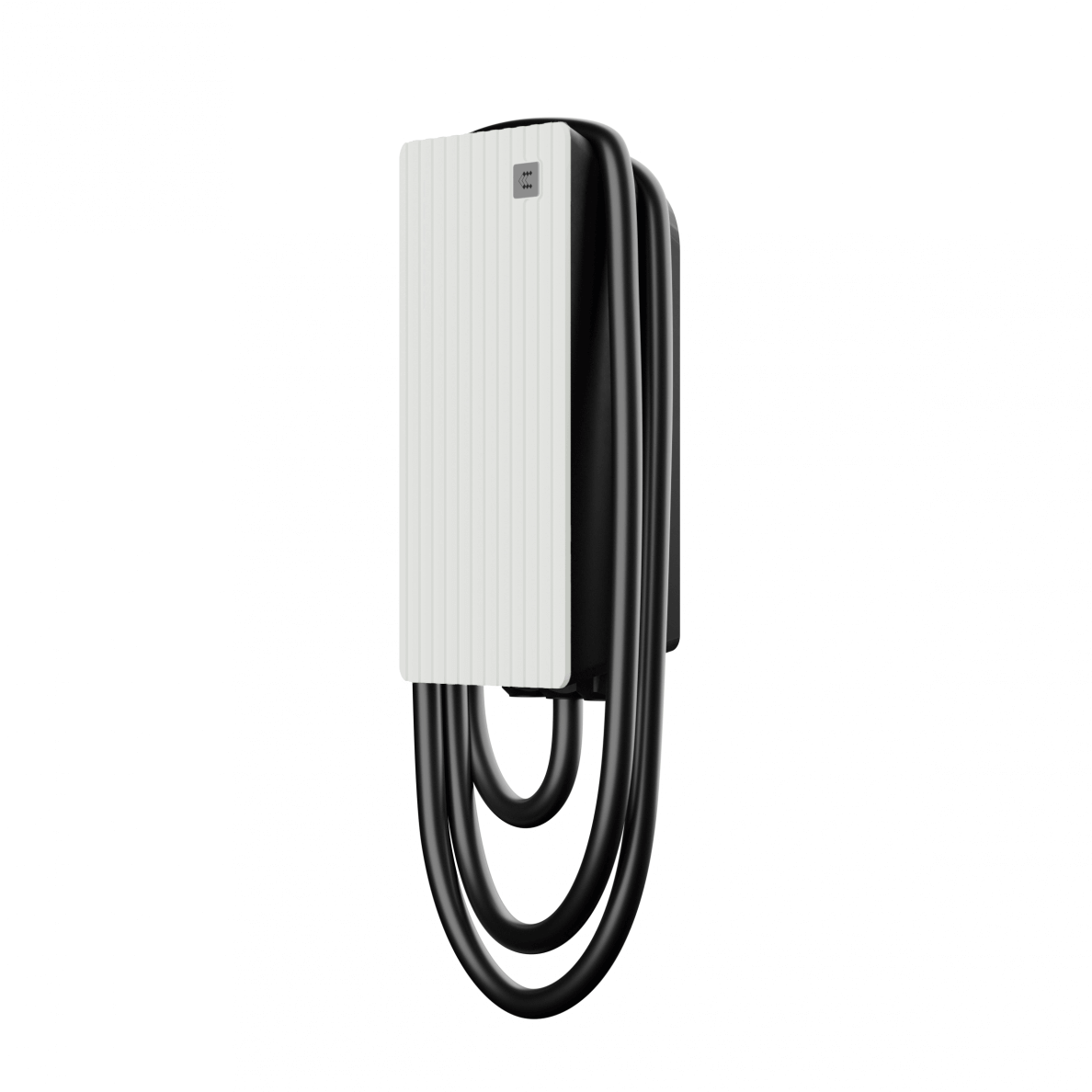

Teltonika charging station - 22kW, 3 phase with Type 2 cable

Product Description:

Overview:
Experience efficient and reliable electric vehicle charging with our advanced EV charging station, designed to meet modern standards of safety and performance. With a robust 36-month warranty, this charger ensures peace of mind for all users.

Key Features:

• Dynamic Power Management: Necessary for accessing current government subsidies (Additional €200).
• Charging Capacity: Up to 22 kW at 32A on a three-phase system, offering fast and efficient charging.
• Integrated 5-Meter Cable: Ensures easy installation and flexibility.

Connectivity Options:

• Wi-Fi: 2.4 GHz b/g/n for seamless connectivity.
• Bluetooth Control: Manage charging easily via a mobile app.
• NFC Reader: Quick and convenient access for users.
• Ethernet (RJ45): Provides stable wired internet connection.
• 4G/LTE (optional): Additional connectivity options available.

Safety and Compliance:

• Antipirene Rating: UL-94V-0 for flame resistance.
• Certifications: CE & UKCA compliant, meeting IEC/EN 61851-1 and 61851-21 standards.
• Integrated RCD: 30 mA AC / 6 mA DC for enhanced electrical safety.
• Monitoring Features:
  • Output voltage and current monitoring
  • Temperature monitoring
  • Input voltage monitoring
  • Ground fault detection
  • Impact resistance (IK10)

Operational Specifications:

• Operating Temperature Range: -30°C to +50°C
• Humidity Tolerance: Up to 95% RH (non-condensing).
• LED Indicators: Show charging status for user convenience.
• Load Balancing: Static and dynamic load balancing for optimal energy use.

Designed for both residential and commercial applications, this high-performance EV charging station combines safety, efficiency, and smart technology, making it the perfect choice for eco-conscious drivers. Enjoy fast, reliable charging that’s ready for the future!
