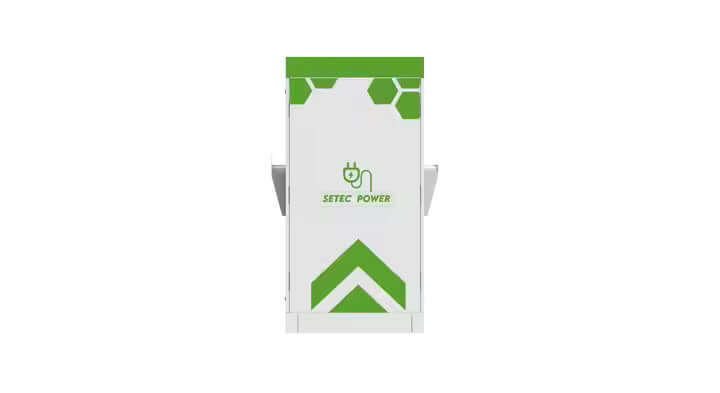

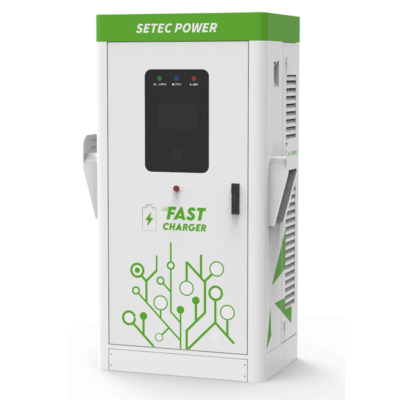

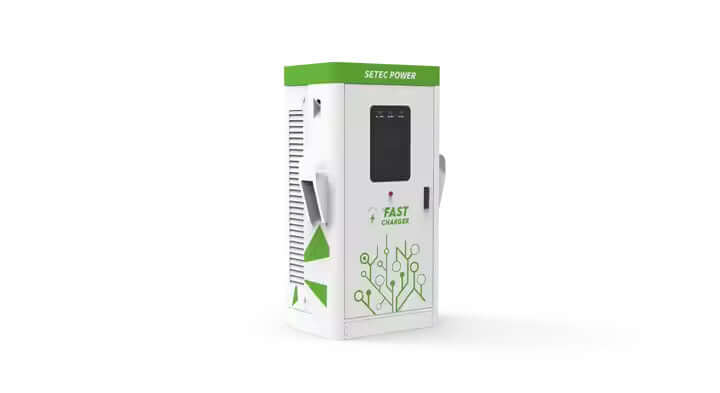

DC charging station - 60 kW CCS2 with 5m cable (LAN, WLAN + GMS) OCPP 1.6
Free shipping on all orders worldwide
Guarantee safe & secure checkout
DC charging station - 60 kW CCS2 with 5m cable (LAN, WLAN + GMS) OCPP 1.6
Product Specifications Overview
AC Input:
- Input Voltage: 3-phase 300-480VAC
- Voltage Range: 300-480V +/- 10%
-
Number of Phases: Three phases, neutral, and ground
- Note: Recommended separate local grounding for two stations
- Frequency: 50Hz or 60Hz
- Frequency Variation Range: +/- 5%
- Power Factor: 0.99
-
Input Current: 130A
- Note: Minimum 125A circuit breaker required, with 50m² copper or 70m² cable
- Residual Current Protection: 30mA
- Current Harmonics: 5% or less
DC Output:
- Nominal Power: 60kW
- Voltage Range: 200V to 1000VDC
- Maximum Current: 0 - 125A
- Efficiency Factor: 93%
- Current Deviation: < 5%
Structure:
- IP Rating: IP54
- Operating Temperature: -25°C to 65°C
- Storage Temperature: -35°C to 70°C
- Dimensions (L x W x H): 1600 x 870 x 600 mm
- Package Weight: 362 kg
Additional Features:
- Certifications: CE/IEC 61851
- Safety: Emergency stop button
- Charging Connector: CCS2 with a standard 5m cable
- Battery Communication: CAN
Control and Communication:
- Control System: OCPP 1.6
- Network Communication: Wi-Fi, LAN, 4G
- Cooling Method: Forced air cooling
This comprehensive set of specifications outlines the robust features and capabilities of the charging station, ensuring reliable performance in a variety of applications.
